Author Topic: how to make a turbo manifold  (Read 83554 times)
john


Location: san diego

« on: October 31, 2010, 01:06:20 PM »

was gonna throw this in the fab thread but figured it would end up getting lost. bunch of shitty pics of a manifold i made yesterday, took about 17 hours not including the collector which i made a few days ago. the purpose of this is just to show the people who dont know and to kind of document it a little because i want to try to write an article for a mag. also will help people learning to fab/weld because when i was learning there really wasnt much help out there so the initial curve was very steep.

first few steps i didnt take pics of but kind of goes like this:

* weld up a collector
* fit it to whatever turbo flange you are using
* weld the flange while its bolted down (i usually just bolt it to a spare exhaust housing)
* brace the collector to the head flange in the location you want the turbo (i have just made an L - bracket that bolts to the t3 flange that is reusable then just bolt a piece to that and weld a rod to the flange. very easy to do and easy to clean up when done

* start on the first runner. doesnt really matter which one just make sure you have an idea of how everythings going to look in your head before you start

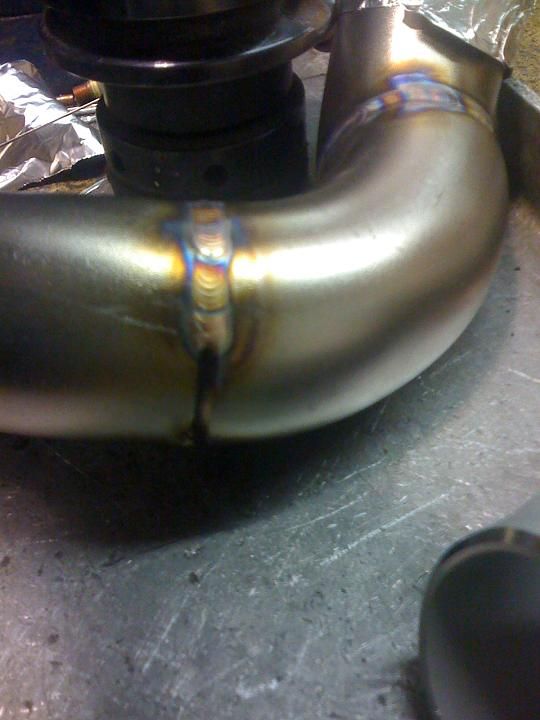

heres my first runner ready to weld. it is very important to bevel all the pieces at least 3/4 of the way down to make sure you have good penetration. it is also important to have all of your bevels consistant in width and depth as this will make the welding look much more consistant when finished.

also a few pics of my purge T and kind of how i purge when im welding the runners. also a pic of the champagne nozzel i use on the torch. the wide nozzel really helps on pipe to get more gas coverage during each pass. each pass i make in pipe is sually about an inch as a time.








oh, also a pics of the pipe before and after wire wheeling. i do this after mockup of the runner right before its welded.



then on to the next runner until all 4 are done and tacked to the collector and head flange.








on longer runners where i know there will be a tendency to warp i will actually weld half od the runner before completing the other half. this help to reduce making changes after welding.



another post....
Logged

www.jspfab.com
it got a chain put around its neck.. the chain eventually fused to its neck like fat people to couches.
john


Location: san diego

« Reply #1 on: October 31, 2010, 01:24:50 PM »

after the four runners are tecked on just throw it back in the car and double check everything to make sure nothing moved.






next step is to decide which runner would potentially be the most difficult to weld at the collector, and which would be the easiest. obviously do the hardest first and the easiest last. i usually start with leaving two runners on after braking off the brace just incase anything happens you dont lose the flange location. i also put a few VERY solid tacks at the head flange for each runner before completely welding to the collector.

i also usually switch to a smaller nozzel for around the collector as the space is usually much tighter.







after the runners are welded to the collector the head flange is bolted down to a plate for final welding.



after it cools i remove it then weld the inside of the runners at the head flange.

on cars like this where space is abundant i wll sometimes actually make the downpipe before the wastegate. also when the wastegate reroutes into the downpipe this helps for have accurate wastegate placement.




then add wastegate







im sure is skipped some important parts for begginers so just let me know if theres anything else you need covered. i was also thinking about doing a simple welding post to show what welds look like in different conditions to help identify problems. ie: too hot, too cold, not enough gas coverage, contamination etc.
Logged

www.jspfab.com
it got a chain put around its neck.. the chain eventually fused to its neck like fat people to couches.
CJ
Just Joking.Fuck You.


Location: DOG FORT

« Reply #2 on: October 31, 2010, 01:28:07 PM »

is that a rwd 4g63?
Logged

"straight up and down son, talmbout release dis pandemic gear on them fools.  Dropping that conflict wear on deh ass, par."
john


Location: san diego

« Reply #3 on: October 31, 2010, 01:35:56 PM »

yeah eclipse motor, evo intake, in a starion. built motor should make around 550-600.
Logged

www.jspfab.com
it got a chain put around its neck.. the chain eventually fused to its neck like fat people to couches.
zach from NY


Street Bastards.

Location: New York.

« Reply #4 on: October 31, 2010, 01:50:30 PM »

Can I just come live next to your garbage cans like a raccoon and you can teach me to do this insanely awesome shit?
Logged

then they all take photobooth pics with sad fruit and peace signs.
then shoot eels out of their assholes at each other.

Stevieg

Location: Alberta canada

WWW
« Reply #5 on: October 31, 2010, 02:32:53 PM »

thanks john, some awesome info in there. some examples of "wrong" welds would be excellent!

steve
Logged
mmmjesse


Location: High Point, NC

« Reply #6 on: October 31, 2010, 03:13:25 PM »

Id like to know reccomended pipe size/quality for manifolds.  Also, say you only have access to a mig welder, any suggestions for welding a manifold with  mig?
Logged

yea i understand, every year someone i know discovers that riding motorcycles is cool.  Its like when you're 11 and you first discover your own boners.  You are mystified and you think you've discovered the new world.  Excitement abounds and you play with your boners even when you really shouldn't, and you want to talk about them with your friends and discuss playing with them all day long.  Imagine you've got some older friends that already knew about boners for years, you're still all excited but they are kinda like.... yea we knew about it.  That is why i don't ride in the cold anymore.  -Al
john


Location: san diego

« Reply #7 on: October 31, 2010, 11:22:16 PM »

The industry standard is sc10/40 304 pipe. The biggest problem with welding stainless steel with a mig is the lack of post flow control. This would cause the welds to become slightly contaminated right after you release the trigger. If you only have access to a mig then I'd reccomend using mild steel pipe instead of stainless. Or find access to a tig.
Logged

www.jspfab.com
it got a chain put around its neck.. the chain eventually fused to its neck like fat people to couches.
mmmjesse


Location: High Point, NC

« Reply #8 on: October 31, 2010, 11:39:01 PM »

I have access to a tig.  its a newer miller machine but its a lower model so i dont know how well it would do or if it could do the sc10/40 pipe.
Logged

yea i understand, every year someone i know discovers that riding motorcycles is cool.  Its like when you're 11 and you first discover your own boners.  You are mystified and you think you've discovered the new world.  Excitement abounds and you play with your boners even when you really shouldn't, and you want to talk about them with your friends and discuss playing with them all day long.  Imagine you've got some older friends that already knew about boners for years, you're still all excited but they are kinda like.... yea we knew about it.  That is why i don't ride in the cold anymore.  -Al
Ash
So's your face


Location: America

« Reply #9 on: October 31, 2010, 11:52:31 PM »

I have a HUGE boner right now.
Logged
Primo


Location: WA

« Reply #10 on: November 01, 2010, 01:37:14 AM »

Just stopping by to say you're rad at what you do.
Logged

You seem like the type of guy who girls want to take to dinner.

i will not sell this car to anyone who is friends with lindsay ross on facebook!!
ECDA


Location: Brooklyn Zoo

WWW
« Reply #11 on: November 01, 2010, 01:42:05 AM »

I'm gonna sticky this, and if anyone wants to do any more cool how-to fab posts, i'll sticky that too. ya heard?
Logged

look at how dope my cressida is and the mayhem it creates when i press hard on the gas.
john


Location: san diego

« Reply #12 on: November 01, 2010, 10:22:41 AM »

I have access to a tig.  its a newer miller machine but its a lower model so i dont know how well it would do or if it could do the sc10/40 pipe.

 the runners usually take about 60-70 amps to weld because of the bevelling, the flanges require a bit more, usually about 120-160 and ill usually make about 3 passes around the turbo flange to kind of preheat as im welding. so maybe a 60 amp pass, then 90 then full heat. the head flange just gets one heavy pass because i actually dont want to put too much heat into it to reduce the warping and stresses. the turbo flange is where cracking is most likely to happen so to me it is the most important weld on the manifold.

oh also to reduce warpage on the turbo flange i actually tack a few spots on the outside, then completely weld the inside. then let it cool and bolt it down, then weld the outside retorquing the bolts between each pass. ive found this gives the flattest surface after finish welding. most of the time it wont require and surfacing or belt sanding.
Logged

www.jspfab.com
it got a chain put around its neck.. the chain eventually fused to its neck like fat people to couches.
mattycakes

Location: sd

« Reply #13 on: November 01, 2010, 01:20:21 PM »

my jsp manifold is one of my favorite things on my car
Logged

driftparty.com

ThrwnSprkz


Location: Akron OH/Pittsburgh PA

« Reply #14 on: November 01, 2010, 02:34:28 PM »

wow, this thread kinda made my day.
& Id love to see a bit about right and wrong welds.

love your work
Logged
